Submersible Pump Cables for Oil Industry

Submersible Pump Cables Flat Cables

250℉/121℃ EPDM/NBR Flat Electrical Submersible Pump Cable


Applications

These cables are designed for installed down well in the oil industry.

Standards

  • IEEE Std. 1018
  • API RP 11S5
  • API RP 11S6

Construction

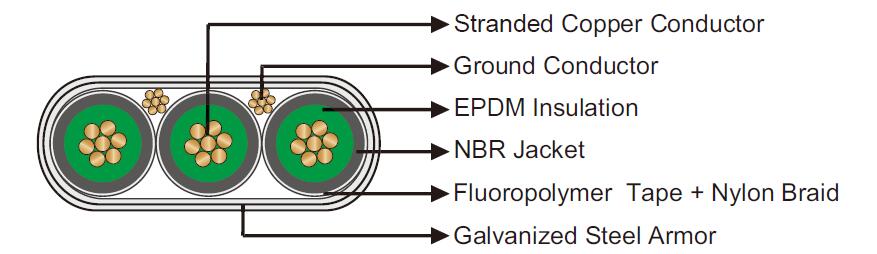

250℉/121℃ EPDM/NBR Flat Electrical Submersible Pump Cable

  • Conductor: Stranded bare copper (7/3.503) with water & gas blocking compound adhesive in the
    outer layer.
  • Insulation: EPDM insulation.
  • Jacket: NBR jacket.
  • Tape: Fluoropolymer tape.
  • Braid: Nylon braid.
  • Ground Conductor: Stranded bare copper (7/1.4mm), 2x7AWG (4AWG).
  • Armor: Interlocked galvanized steel.

Dimensions and Weight:

5KV

Cable Type

Conductor
Size

Conductor
O.D.

Insulation
Thickness

Overall O.D.

Weight



AWG

mm²

inches

mm

Inches

mm

Inches

mm

lbs/
kft

kg/
km

QYEN-121-5kV-3G2/0

2/0

67.4

0.41

10.47

0.09

2.3

2.40x0.85

61.0 x 21.7

2734

4070

Other conductor size can be offered upon request.
